Cutting Width
74"
86"
Cutting Height
36"
42"
Cutting Edge
1/2" x 3"
1/2" x 3"
Snowblower Shell
12 Gauge
10 Gauge
Skid Shoes
Adjustable
Adjustable
Fan Diameter
35 Inches
41 Inches
Fan Blades
6
6
Fan Shafts
1 15/16"
1 15/16"
Fan Shaft Bearings
1 15/16"
1 15/16"
Drive System
Direct Chain
Direct Chain
Drive Chain
60 (Oil Bath)
80 (Oil Bath)
Chute Rotation
280 Deg.
275 Deg.
Chute Deflector
Hyd.
Hyd.
Chute Diameter
14 Inches
14 Inches

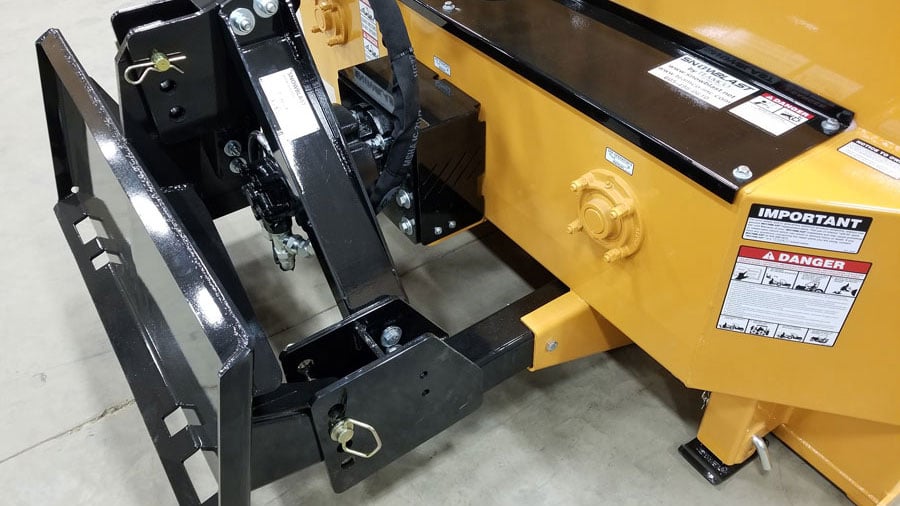

Hitch - Choices
Cat. (I) 3-Point. (Std.)
Universal Skid Steer -
Optional
CAT II 3-Point. (Std.)
Universal Skid Steer -
Optional
Maximum Pressure
(Hydraulic Driven)
4000 PSI
4000 PSI
Horsepower Rating
(GPM x Pressure / 1714 = HP)
40 - 80 HP
60 - 120 HP
Weight
Base: 1,475 lbs
Skid Steer: 1,675 lbs
Base: 2,250 lbs
Skid Steer: 2,450 lbs
Cutting Width
74"
Cutting Height
36"
Cutting Edge
1/2" x 3"
Snowblower Shell
12 Gauge
Skid Shoes
Adjustable
Fan Diameter
35 Inches
Fan Blades
6
Fan Shafts
1 15/16"
Fan Shaft Bearings
1 15/16"
Drive System
Direct Chain
Drive Chain
60 (Oil Bath)
Chute Rotation
280 Deg.
Chute Deflector
Hyd.
Chute Diameter
14 Inches
Hitch - Choices
Cat. (I) 3-Point (Std.)
Universal Skid Steer - Optional
Maximum Pressure
(Hydraulic Driven)
4000 PSI
Horsepower Rating
(GPM x Pressure / 1714 = HP)
40 - 80 HP
Weight
Base: 1,475 lbs.
Skid Steer: 1,675 lbs.
Cutting Width
86"
Cutting Height
42"
Cutting Edge
1/2" x 3"
Snowblower Shell
10 Gauge
Skid Shoes
Adjustable
Fan Diameter
41 Inches
Fan Blades
6
Fan Shafts
1 15/16"
Fan Shaft Bearings
1 15/16"
Drive System
Direct Chain
Drive Chain
80 (Oil Bath)
Chute Rotation
275 Deg.
Chute Deflector
Hyd.
Chute Diameter
14 Inches
Hitch - Choices
CAT II 3-Point (Std.)
Universal Skid Steer - Optional
Maximum Pressure
(Hydraulic Driven)
4000 PSI
Horsepower Rating
(GPM x Pressure / 1714 = HP)
60 - 120 HP
Weight
Base: 2,250 lbs.
Skid Steer: 2,450 lbs.
